ESC 80 emergency exit light TWT8051WK

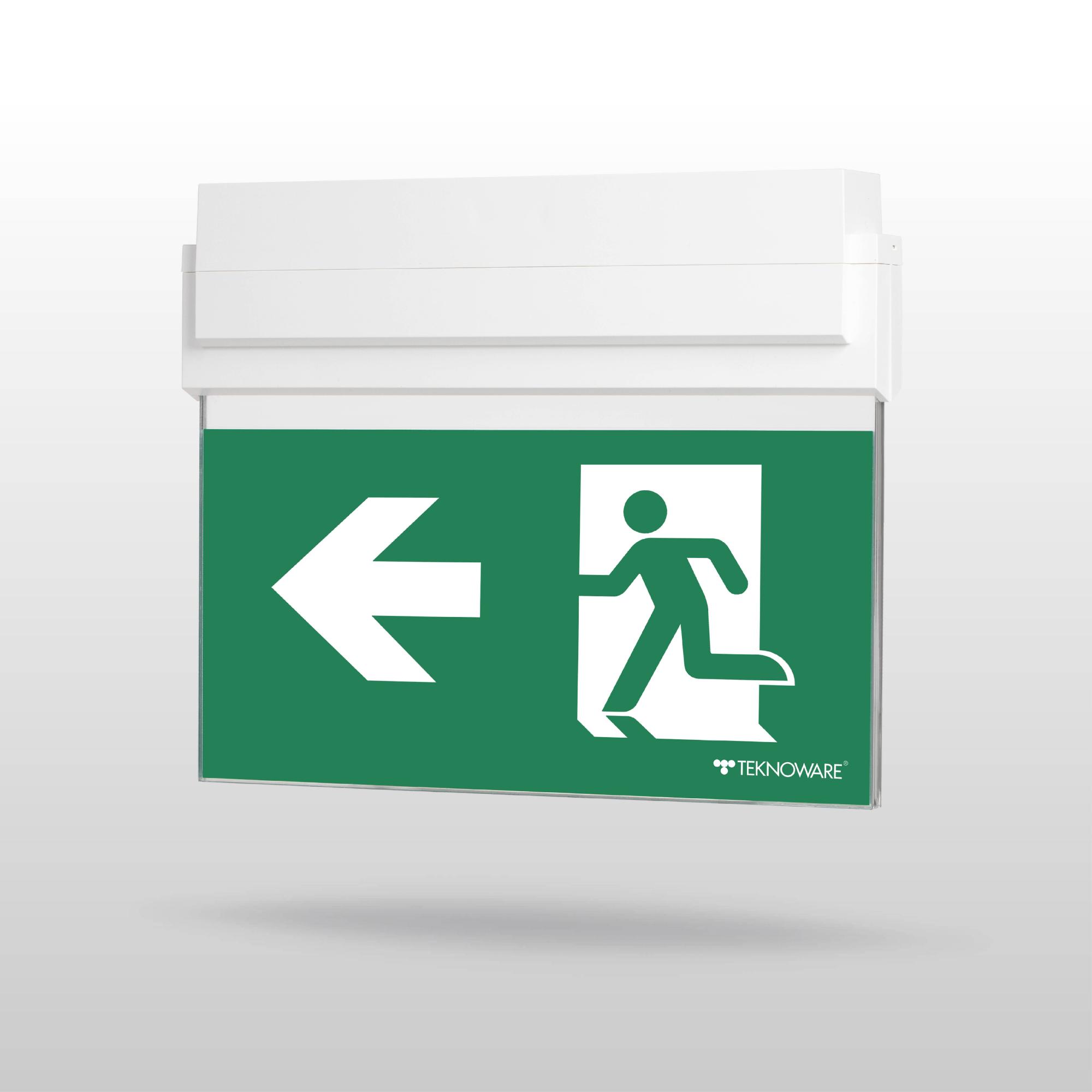

ESC 80 emergency exit light TWT8051WK - Image 2

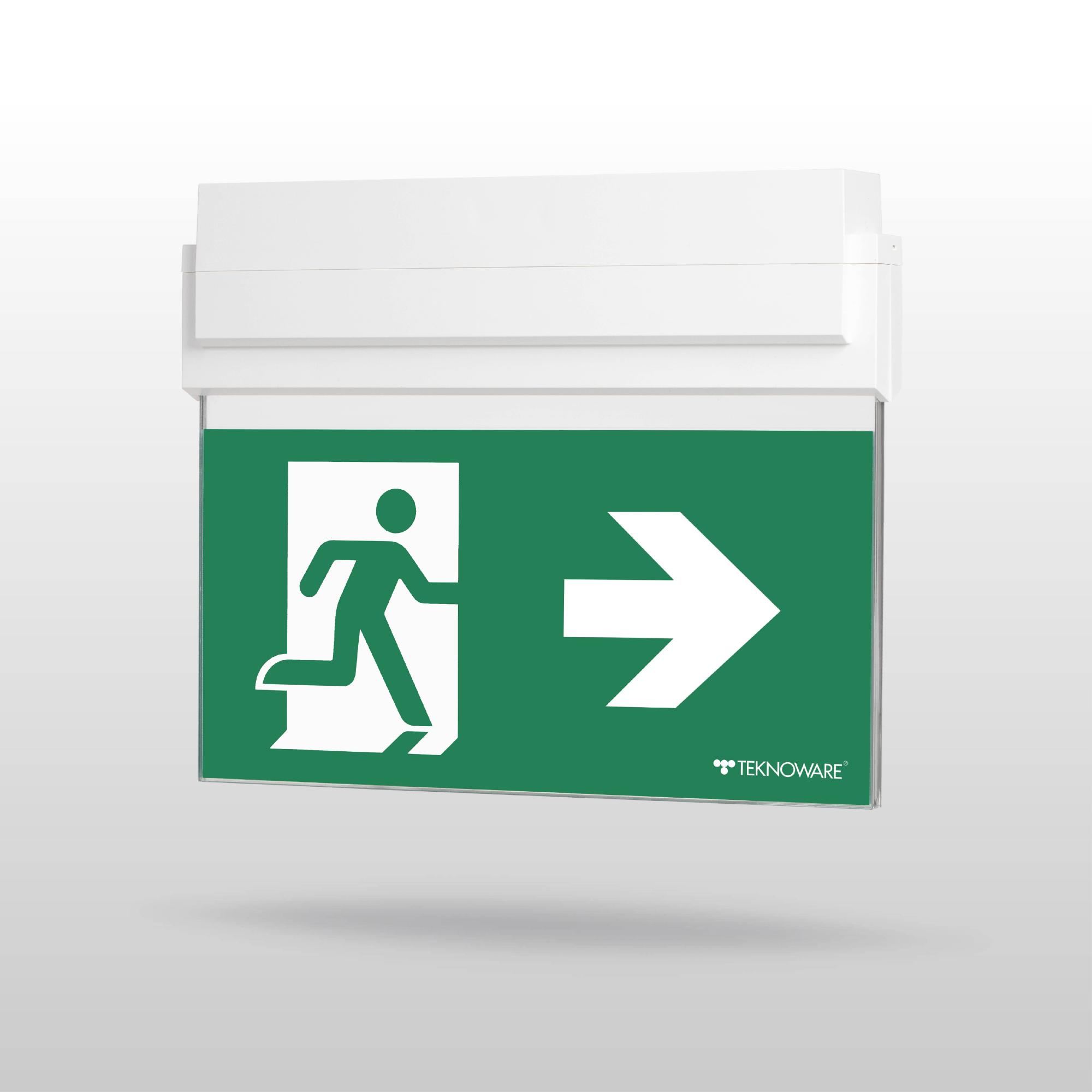

ESC 80 emergency exit light TWT8051WK - Image 3

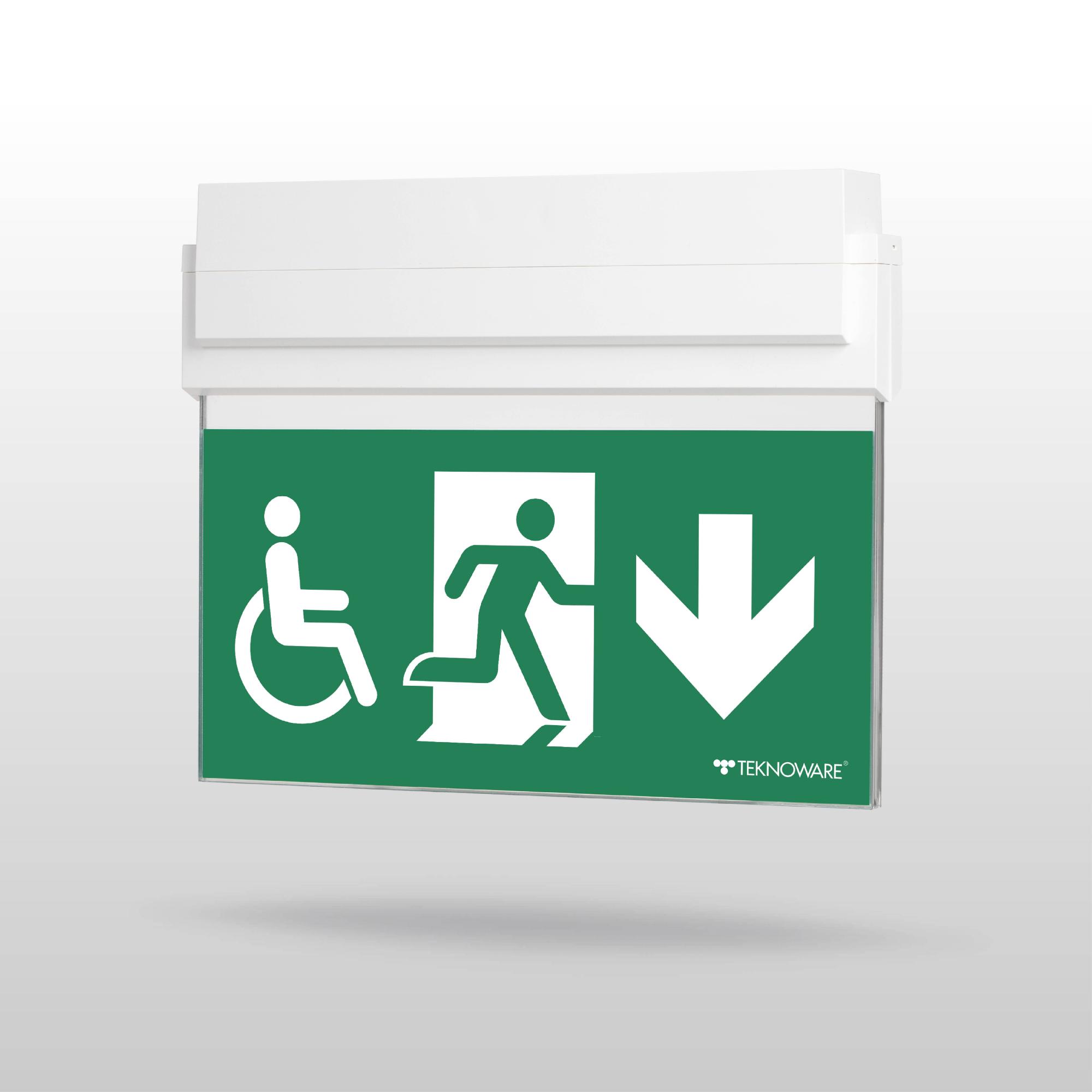

ESC 80 emergency exit light TWT8051WK - Image 4

ESC 80 emergency exit light TWT8051WK

Download PDF

Addressable 230 V centrally supplied emergency exit light.

ESC 80 is an emergency exit light equipped with a light plate, combining cutting edge technology combined with modern luminaire design. Thanks to Teknoware’s innovative electronics and product design, the ESC 80 luminaire combines uniformly illuminated pictograms, low power consumption, as well as a slender appearance.
There is a selection of three different luminaire sizes. ESC 80 luminaires can be used as 1 or 2 sided, as well as recess or surface mounted.
ESC 80 is particularly easy and fast to install thanks to a separate mounting piece, into which also the power supply is connected.

Pictograms not included—must be ordered separately.

icon-ce
EN 1838
EN 60598_2_22
650 °C
43
icon-LED
220-240 V 50/60 Hz AC DC
icon-ProtectionClassII
9003
icon-TapsaControl
20 m
26 m
30 m
Product codeTWT8051WKElectrical number (FI)4211314
GTIN6438045011813TARIC code94056080
Weight0,69 kgMeasurements268 × 40 × 185 mm
Body materialPCCE MarkYes
ColourRAL9003 (Signal white)Diffusor MaterialPolycarbonate
Electrical Installation2/3 x 2,5 mm²EN 1838Yes
EN 60598-2-22YesETIM classEmergency luminaire (EC001957)
Glow Wire Test of Plastic Materials (°C)650 Yksittäispakattu vai bulkkiBulk
IP ClassIP43Light SourceLED
Max Input Power VA6,6 VAMax Input Power W4,2 W
MountingCeiling, WallMounting optionFlag, Pendel, Recess
Nominal Supply Voltage220-240 V, 50/60 Hz AC, DCPictogramNone
Protection ClassIIAperture for Recess Mounting45 x 275 mm
Tapsa ControlYesTemperature Range Min - Max (°C)-30...+50
Viewing distance20 m, 26 m, 30 m
Product codeTWT8051WK
Electrical number (FI)4211314
GTIN6438045011813
TARIC code94056080
Weight0,69 kg
Measurements268 × 40 × 185 mm
Body materialPC
CE MarkYes
ColourRAL9003 (Signal white)
Diffusor MaterialPolycarbonate
Electrical Installation2/3 x 2,5 mm²
EN 1838Yes
EN 60598-2-22Yes
ETIM classEmergency luminaire (EC001957)
Glow Wire Test of Plastic Materials (°C)650
Yksittäispakattu vai bulkkiBulk
IP ClassIP43
Light SourceLED
Max Input Power VA6,6 VA
Max Input Power W4,2 W
MountingCeiling, Wall
Mounting optionFlag, Pendel, Recess
Nominal Supply Voltage220-240 V, 50/60 Hz AC, DC
PictogramNone
Protection ClassII
Aperture for Recess Mounting45 x 275 mm
Tapsa ControlYes
Temperature Range Min - Max (°C)-30...+50
Viewing distance20 m, 26 m, 30 m

Scale Images

Scale image
Scale image
Scale image

Light Distribution Charts

Downlight chart for Exit Lights

  • Tables of 1 lux and 0,5 lux, under the Exit Light.
  • Level of measurement 0,02 m, measurement result with battery operation
R1 distance from wall, X axis
R4 distance from wall, Y axis

Downlight chart for Exit Lights

Mounting height (m)Below the light (lx)R1 (m)R4 (m)R1 (m)R4 (m)
--1 lx1 lx0.5 lx0.5 lx
21.10.511.52
2.50.71.52

Downloads and Data sheets

File nameDownload
Product cardDownload
General information about installing Teknoware lightsDownload
Installation Guide ESC 80 - VOT51Download

Required products

Product codeElectrical numberDescriptionViewing distancePictogram
PBV80201E4281206Pictogram PBV80201E20 m
PBV80201E14282250Pictogram PBV80201E120 m
PBV80201E24282251Pictogram PBV80201E220 m
PBV80201ER4226380Pictogram PBV80201ER20 m
PBV80202E4281205Pictogram PBV80202E20 m
PBV80202E34282252Pictogram PBV80202E320 m
PBV80202ER4226381Pictogram PBV80202ER20 m
PBV80261E4281208Pictogram PBV80261E26 m
PBV80261E14282253Pictogram PBV80261E126 m
PBV80261E24282254Pictogram PBV80261E226 m
PBV80262E4281207Pictogram PBV80262E26 m
PBV80262E34282255Pictogram PBV80262E326 m
PBV80265E4282365Pictogram PBV80265E26 m
PBV80265E34282364Pictogram PBV80265E326 m
PBV80301E4280941Pictogram PBV80301E30 m
PBV80301E14282256Pictogram PBV80301E130 m
PBV80301E24282257Pictogram PBV80301E230 m
PBV80301ER4226376Pictogram PBV80301ER30 m
PBV80302E4280940Pictogram PBV80302E30 m
PBV80302E34282258Pictogram PBV80302E330 m
PBV80302ER4226377Pictogram PBV80302ER30 m

Compatible products

Product codeElectrical numberDescription
TWT90004211302Suspension bracket TWT9000

Accessories

Product codeElectrical numberDescription
TW77507B4281135Shock protecting cover TW77507B
TWT80014281031Recess mounting frame TWT8001
TWT90004211302Suspension bracket TWT9000
TWT90024211300Flag bracket TWT9002
