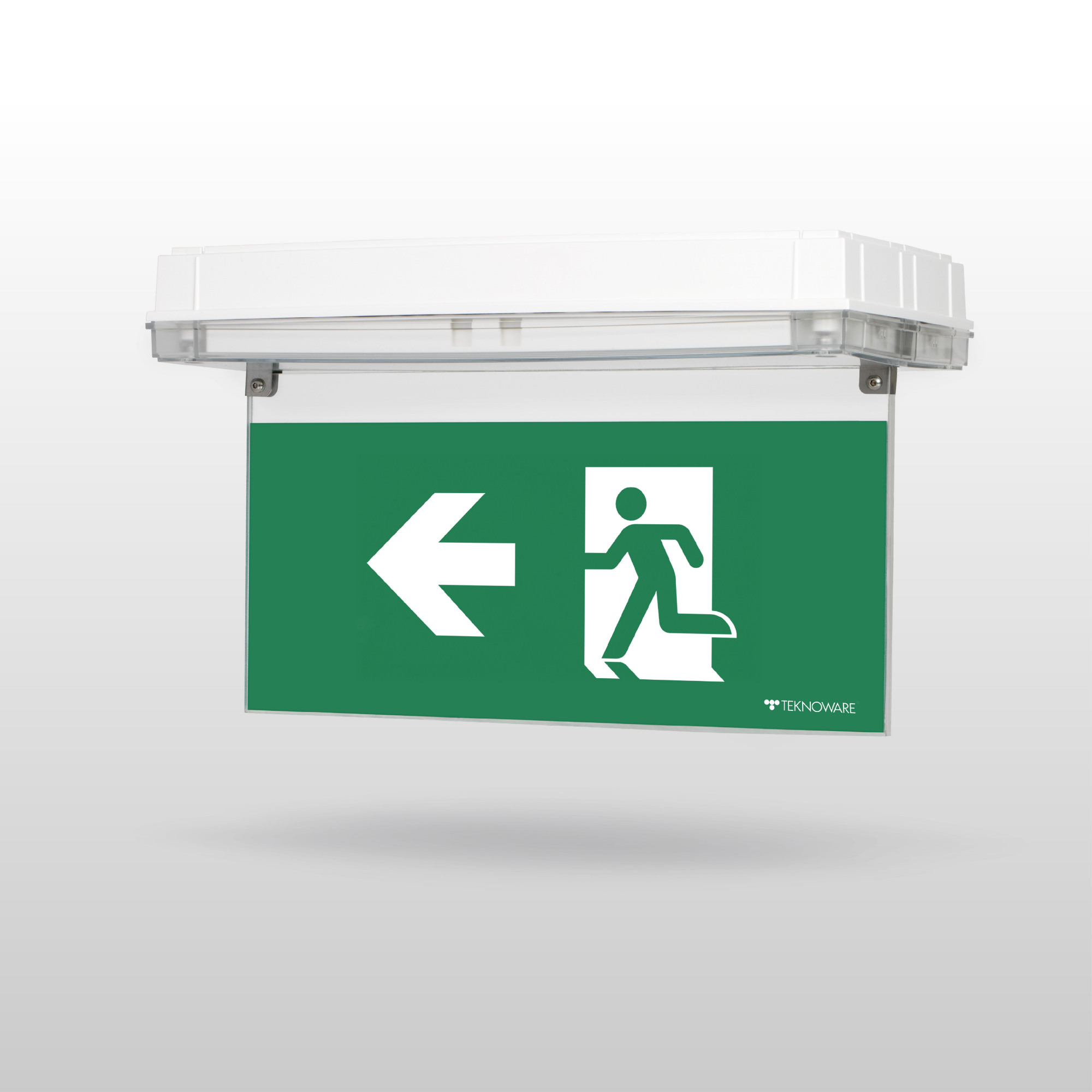

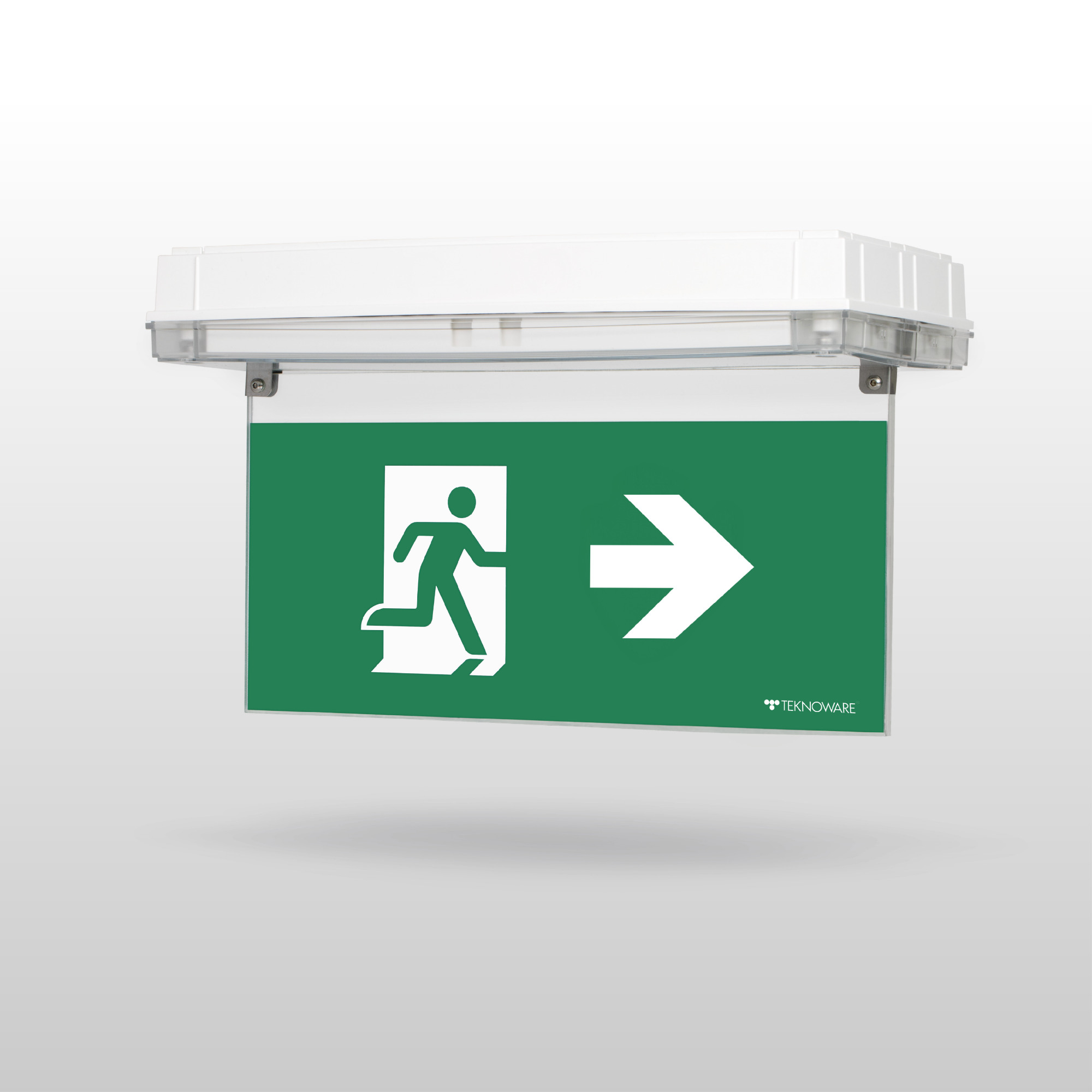

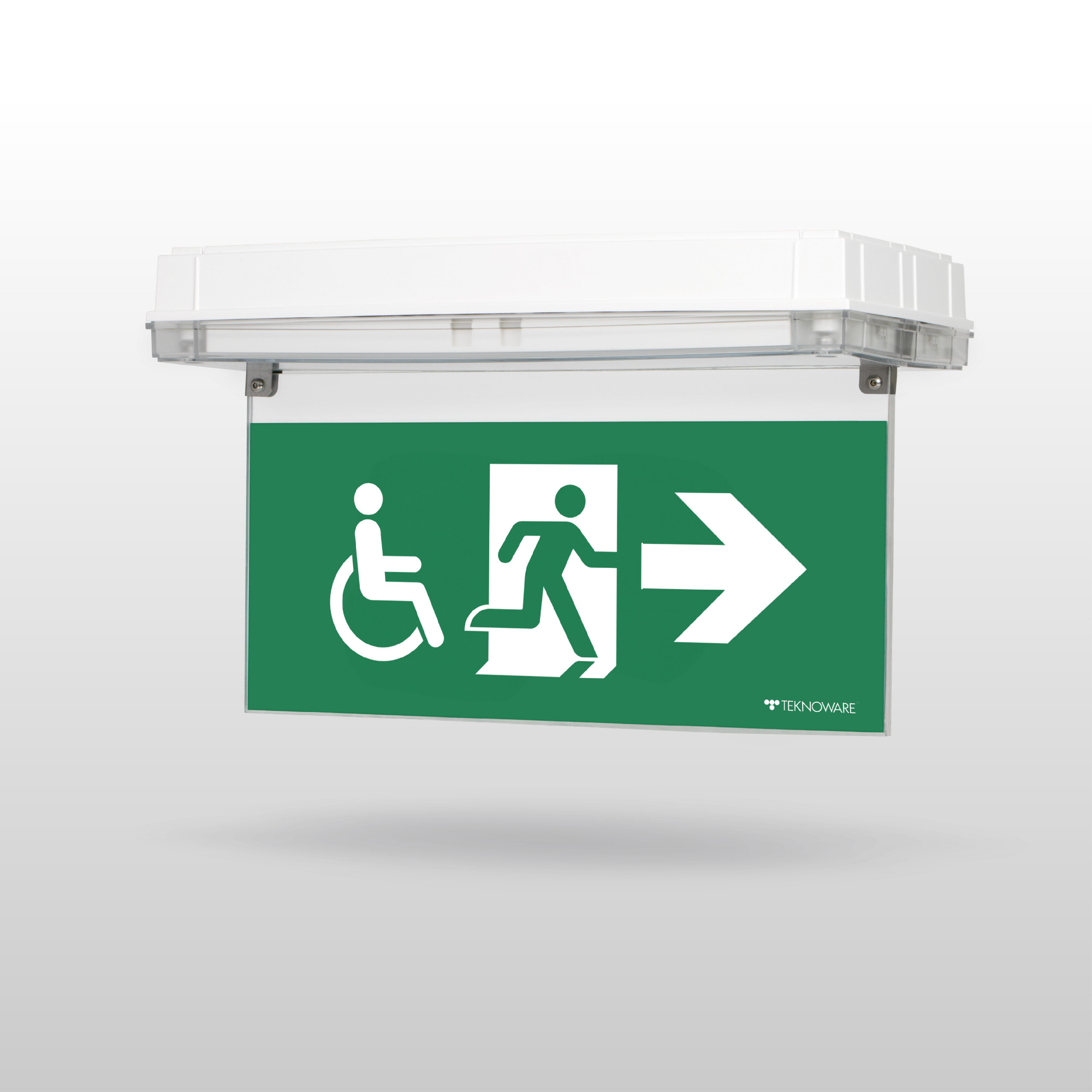

Solid Exit 2 Emergency Exit Light TWT3151WK
230 V centrally supplied emergency exit light
Solid Exit 2 emergency exit light is equipped with a light plate. The luminaire is designed specifically to withstand harsh conditions. It is a 2-sided IP65 enclosure classed luminaire and completely dust and water proof.
Solid Exit 2 is suitable for example for industrial premises and parking halls. Escap and centrally supplied luminaires are also suitable for outdoor use.Special attention has been paid to the design for easy installation.
Pictograms not included—must be ordered separately.
| Product code | TWT3151WK | Electrical number (FI) | 4210659 | |
|---|---|---|---|---|
| GTIN | 6438045022178 | TARIC code | 94056180 | |
| Weight | 1,80 kg | Measurements | 371 × 181 × 232 mm | |
| Body material | plastic | CE Mark | Yes | |
| Colour | RAL9003 (Signal white) | Diffusor Material | Polycarbonate | |
| Electrical Installation | 2/3 x 2,5 mm² | EN 1838 | Yes | |
| EN 60598-2-22 | Yes | ETIM class | Emergency luminaire (EC001957) | |
| Glow Wire Test of Plastic Materials (°C) | 650 | Intelligent Controller | Yes | |
| IP Class | IP65 | Light Source | LED | |
| Max Input Power VA | 6 VA | Max Input Power W | 3 W | |
| Mounting | Ceiling, Surface | Mounting option | Wall | |
| Nominal Supply Voltage | 220-240 V, 50/60 Hz AC, DC | Pictogram | None | |
| Protection Class | II | Tapsa Control | Yes | |
| Temperature Range Min - Max (°C) | -30…+50 | Suitable for Through-Wiring | Yes | |
| Viewing distance | 30 m |
| Product code | TWT3151WK |
|---|---|
| Electrical number (FI) | 4210659 |
| GTIN | 6438045022178 |
| TARIC code | 94056180 |
| Weight | 1,80 kg |
| Measurements | 371 × 181 × 232 mm |
| Body material | plastic |
| CE Mark | Yes |
| Colour | RAL9003 (Signal white) |
| Diffusor Material | Polycarbonate |
| Electrical Installation | 2/3 x 2,5 mm² |
| EN 1838 | Yes |
| EN 60598-2-22 | Yes |
| ETIM class | Emergency luminaire (EC001957) |
| Glow Wire Test of Plastic Materials (°C) | 650 |
| Intelligent Controller | Yes |
| IP Class | IP65 |
| Light Source | LED |
| Max Input Power VA | 6 VA |
| Max Input Power W | 3 W |
| Mounting | Ceiling, Surface |
| Mounting option | Wall |
| Nominal Supply Voltage | 220-240 V, 50/60 Hz AC, DC |
| Pictogram | None |
| Protection Class | II |
| Tapsa Control | Yes |
| Temperature Range Min - Max (°C) | -30…+50 |
| Suitable for Through-Wiring | Yes |
| Viewing distance | 30 m |
Scale Images
Downloads and Data sheets
| File name | Download |
|---|---|
| Product card | Download |
| Installation Guide Solid - VOT105 | Download |
| General information about installing Teknoware lights | Download |
Required products
| Product code | Electrical number | Description | Viewing distance | Pictogram | |
|---|---|---|---|---|---|
| PBV31301E | 4210656 | Pictogram PBV31301E | 30 m |   | |
| PBV31301E1 | 4210657 | Pictogram PBV31301E1 | 30 m | | |
| PBV31301E2 | 4210658 | Pictogram PBV31301E2 | 30 m | | |
| PBV31301ER | 4226378 | Pictogram PBV31301ER | 30 m | ||
| PBV31302E | 4210641 | Pictogram PBV31302E | 30 m |  | |
| PBV31302E3 | 4210655 | Pictogram PBV31302E3 | 30 m | | |
| PBV31302ER | 4226379 | Pictogram PBV31302ER | 30 m |  | |
| PBV31305E | 4282373 | Pictogram PBV31305E | 30 m |  | |
| PBV31305E3 | 4282374 | Pictogram PBV31305E3 | 30 m | |
