Name: Heavy Exit emergency exit light TWSA992WM
SKU: TWSA992WM

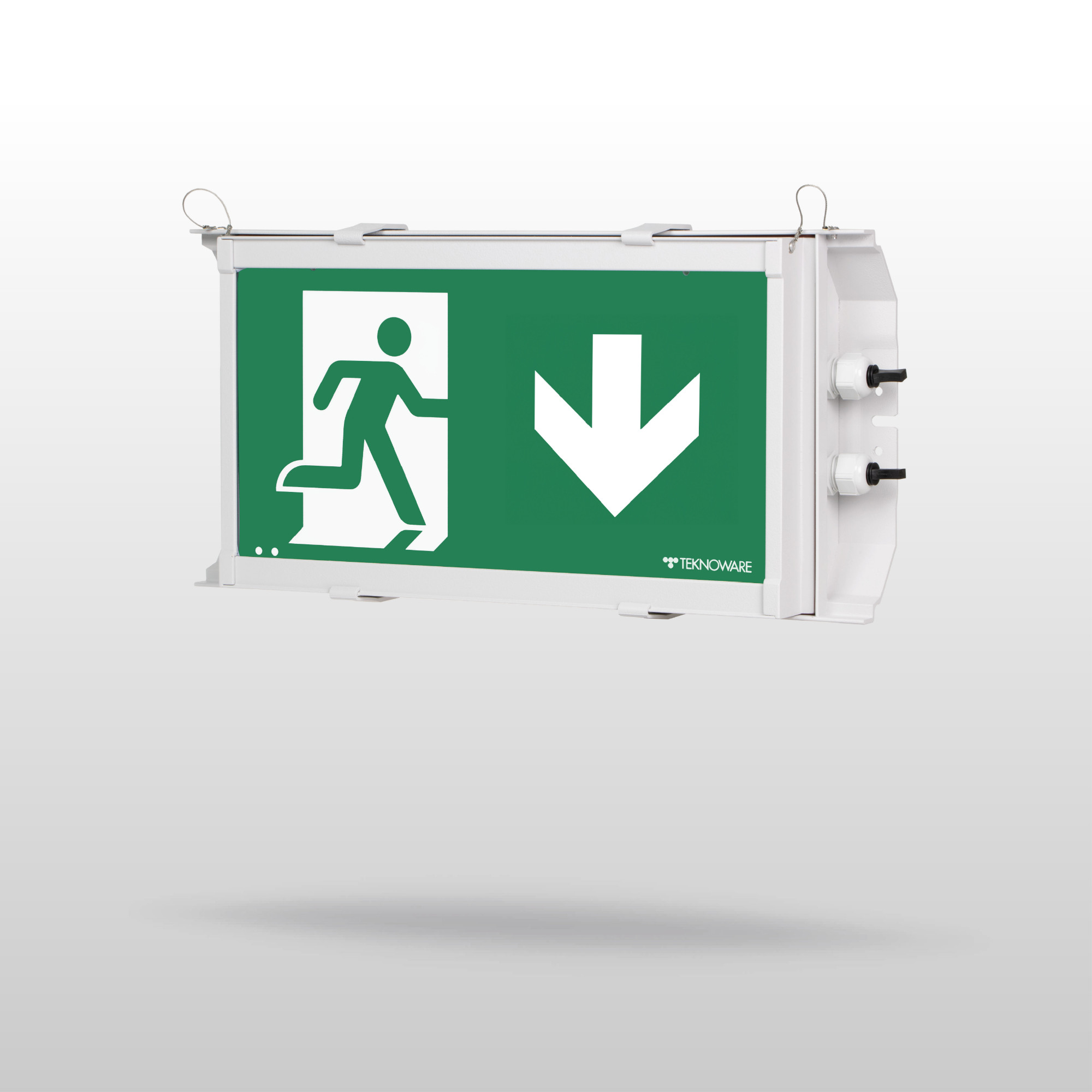

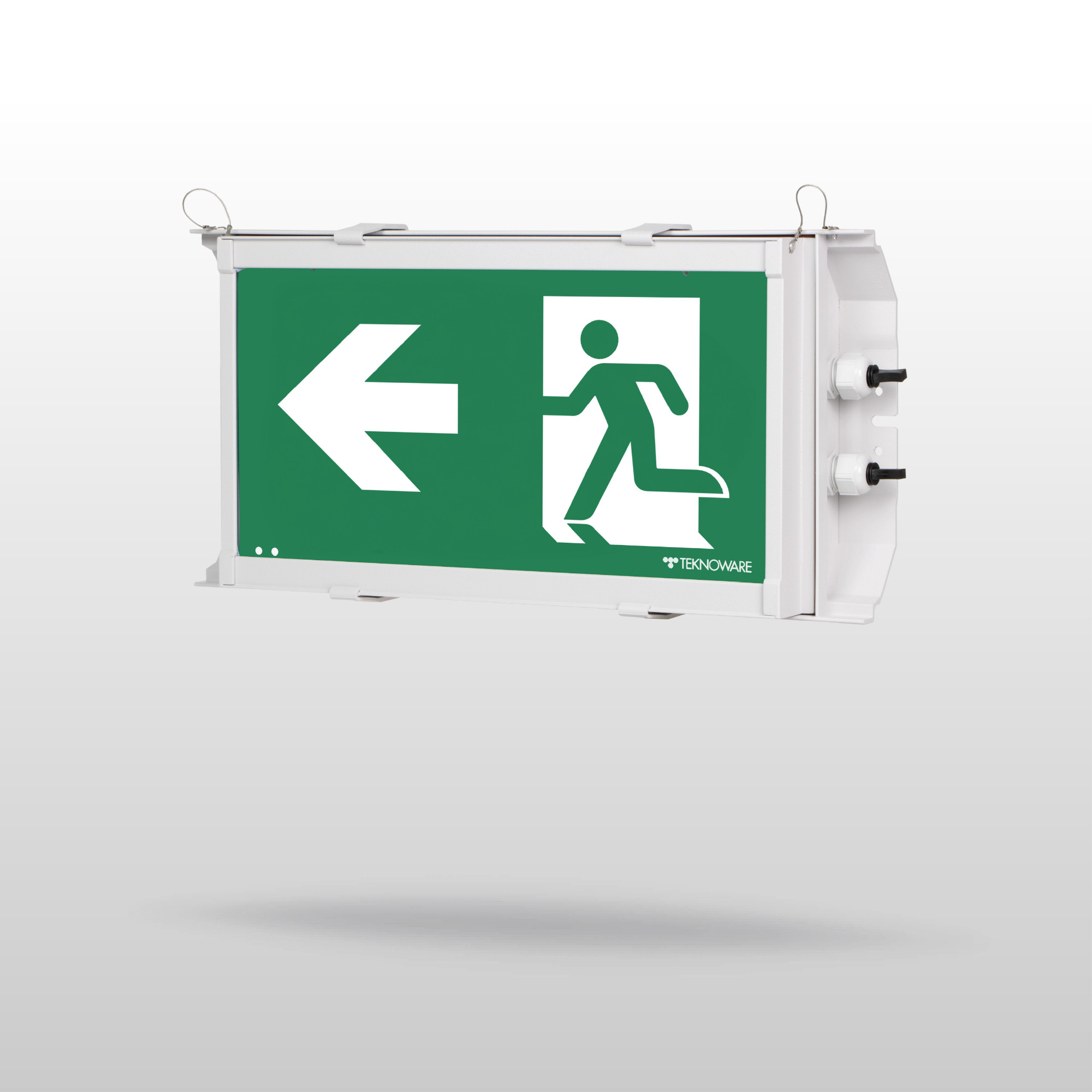

Heavy Exit emergency exit light TWSA992WM

Self-contained emergency exit light with 1 h super capacitor and self-testing

Teknoware Heavy Exit is a robust emergency exit light for demanding conditions such as factories, power plants, machine shops, barns and storage facilities. This nearly maintenance-free luminaire has a heat-tempered glass face and a long-lasting and durable aluminium frame. The Heavy Exit is IP65-rated, so it is highly resistant to dust, water and chemicals, and it will continue to function even in demanding conditions. The colour of the luminaire is gray (RAL 7047).

Pictograms not included—must be ordered separately.

Product code	TWSA992WM	Electrical number (FI)	4148646
GTIN	6438045027203	TARIC code	94056180
Weight	4,00 kg	Measurements	475 × 235 × 85 mm
Backup (h)	1 h	Body material	aluminium profile
CE Mark	Yes	Diffusor Material	Glass
Electrical Installation	3 x 2,5 mm²	EN 1838	Yes
EN 60598-2-22	Yes	Escap	Yes
ETIM class	Emergency luminaire (EC001957)	Glow Wire Test of Plastic Materials (°C)	650
IP Class	IP65	Light Source	LED
LumiTest	Yes	Max Input Power VA	3,2 VA
Mounting	Wall	Nominal Supply Voltage	220-240 V, 50/60 Hz AC
Pictogram	None	Protection Class	I
Temperature Range Min - Max (°C)	-25…+35	Suitable for Through-Wiring	Yes
Viewing distance	37 m

Product code	TWSA992WM
Electrical number (FI)	4148646
GTIN	6438045027203
TARIC code	94056180
Weight	4,00 kg
Measurements	475 × 235 × 85 mm
Backup (h)	1 h
Body material	aluminium profile
CE Mark	Yes
Diffusor Material	Glass
Electrical Installation	3 x 2,5 mm²
EN 1838	Yes
EN 60598-2-22	Yes
Escap	Yes
ETIM class	Emergency luminaire (EC001957)
Glow Wire Test of Plastic Materials (°C)	650
IP Class	IP65
Light Source	LED
LumiTest	Yes
Max Input Power VA	3,2 VA
Mounting	Wall
Nominal Supply Voltage	220-240 V, 50/60 Hz AC
Pictogram	None
Protection Class	I
Temperature Range Min - Max (°C)	-25…+35
Suitable for Through-Wiring	Yes
Viewing distance	37 m
