Zonespot II Midbay emergency light TWT9356WKT
Addressable 230 V centrally supplied LED emergency light for installation heights of 3 to 14 m
The Zonespot II Midbay is a surface-mounted emergency light. The luminaire’s optics are designed to provide a broad, uniform light pattern that illuminates open areas effectively.
Thanks to the IP43 enclosure class, the Zonespot II is also suitable for damp areas. The luminaire is easy and quick to install thanks to a separate mounting base, which is also connected to the power supply.
| Product code | TWT9356WKT | Electrical number (FI) | 4148821 | |
|---|---|---|---|---|
| GTIN | 06438045029115 | TARIC code | 94056180 | |
| Weight | 0,50 kg | Measurements | 180 × 50 × 180 mm | |
| Body material | plastic | CE Mark | Yes | |
| Colour | RAL9005 (Jet black) | Diffusor Material | Acryle | |
| Electrical Installation | 2/3 x 2,5 mm² | EN 60598-2-22 | Yes | |
| ETIM class | Emergency luminaire (EC001957) | Glow Wire Test of Plastic Materials (°C) | 650 | |
| Intelligent Controller | Yes | IP Class | IP43 | |
| Light Source | LED | Luminous Flux (lm) | 500 | |
| Max Input Power VA | 16 VA | Max Input Power W | 9,5 W | |
| Mounting | Surface | Mounting option | Pendel | |
| Nominal Supply Voltage | 220-240 V, 50/60 Hz AC, DC | Protection Class | II | |
| Tapsa Control | Yes | Temperature Range Min - Max (°C) | -30...+50 | |
| Suitable for Through-Wiring | Yes |
| Product code | TWT9356WKT |
|---|---|
| Electrical number (FI) | 4148821 |
| GTIN | 06438045029115 |
| TARIC code | 94056180 |
| Weight | 0,50 kg |
| Measurements | 180 × 50 × 180 mm |
| Body material | plastic |
| CE Mark | Yes |
| Colour | RAL9005 (Jet black) |
| Diffusor Material | Acryle |
| Electrical Installation | 2/3 x 2,5 mm² |
| EN 60598-2-22 | Yes |
| ETIM class | Emergency luminaire (EC001957) |
| Glow Wire Test of Plastic Materials (°C) | 650 |
| Intelligent Controller | Yes |
| IP Class | IP43 |
| Light Source | LED |
| Luminous Flux (lm) | 500 |
| Max Input Power VA | 16 VA |
| Max Input Power W | 9,5 W |
| Mounting | Surface |
| Mounting option | Pendel |
| Nominal Supply Voltage | 220-240 V, 50/60 Hz AC, DC |
| Protection Class | II |
| Tapsa Control | Yes |
| Temperature Range Min - Max (°C) | -30...+50 |
| Suitable for Through-Wiring | Yes |
Scale Images
Light Distribution Charts
- 0.5 lux table for open areas, in accordance with EN 1838; 0.5-m border zone is taken into account in the table.
- Level of measurement 0.02 m, measurement result in emergency mode
R1 distance from wall, X axis
R2 mounting distance, X axis
R3 mounting distance, Y axis
R4 distance from wall, Y axis

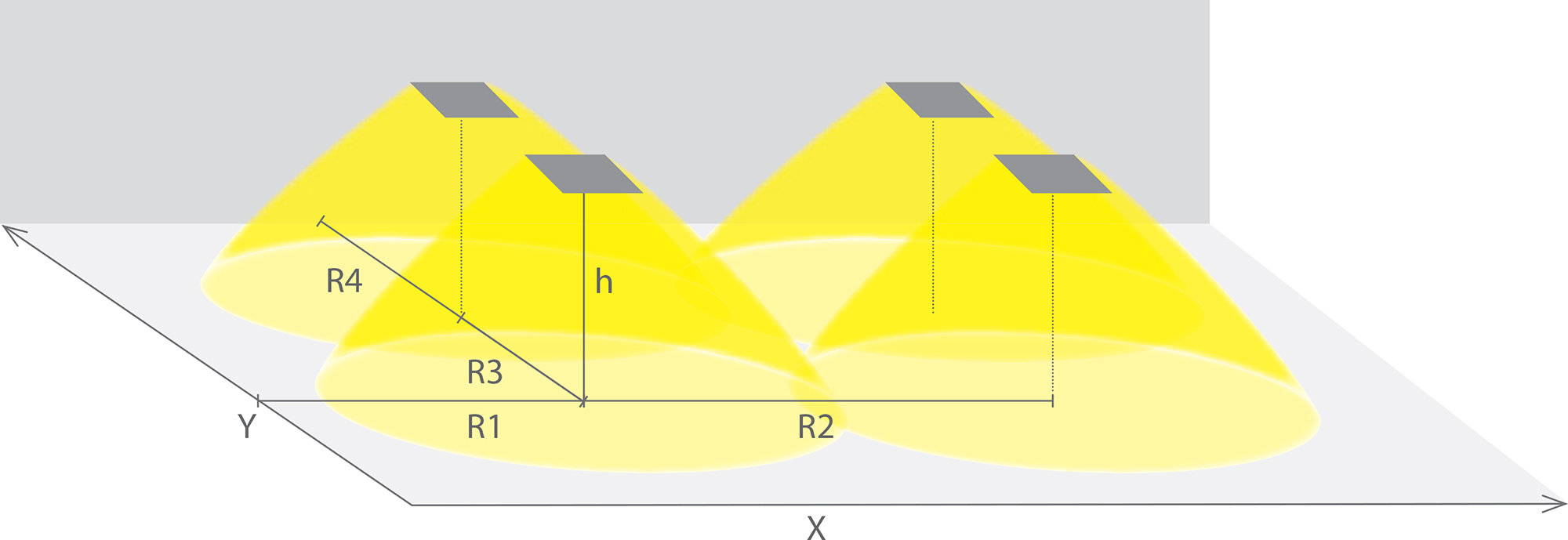

Emergency lighting for open areas (ceiling mounting)
| Mounting height (m) | Below the light (lx) | R1 (m) | R2 (m) | R3 (m) | R4 (m) |
| - | - | 0.5 lx | 0.5 lx | 0.5 lx | 0.5 lx |
| 3 | 36 | 4.5 | 8 | 8 | 4.5 |
| 4 | 21 | 5 | 9 | 9 | 5 |
| 6 | 11 | 6.5 | 12 | 12 | 6.5 |
| 8 | 5 | 7.5 | 14 | 14 | 7.5 |
| 10 | 3 | 8.5 | 16 | 16 | 8.5 |
| 12 | 2.5 | 9.5 | 18 | 18 | 9.5 |
| 14 | 1.8 | 10.5 | 20 | 20 | 10.5 |
