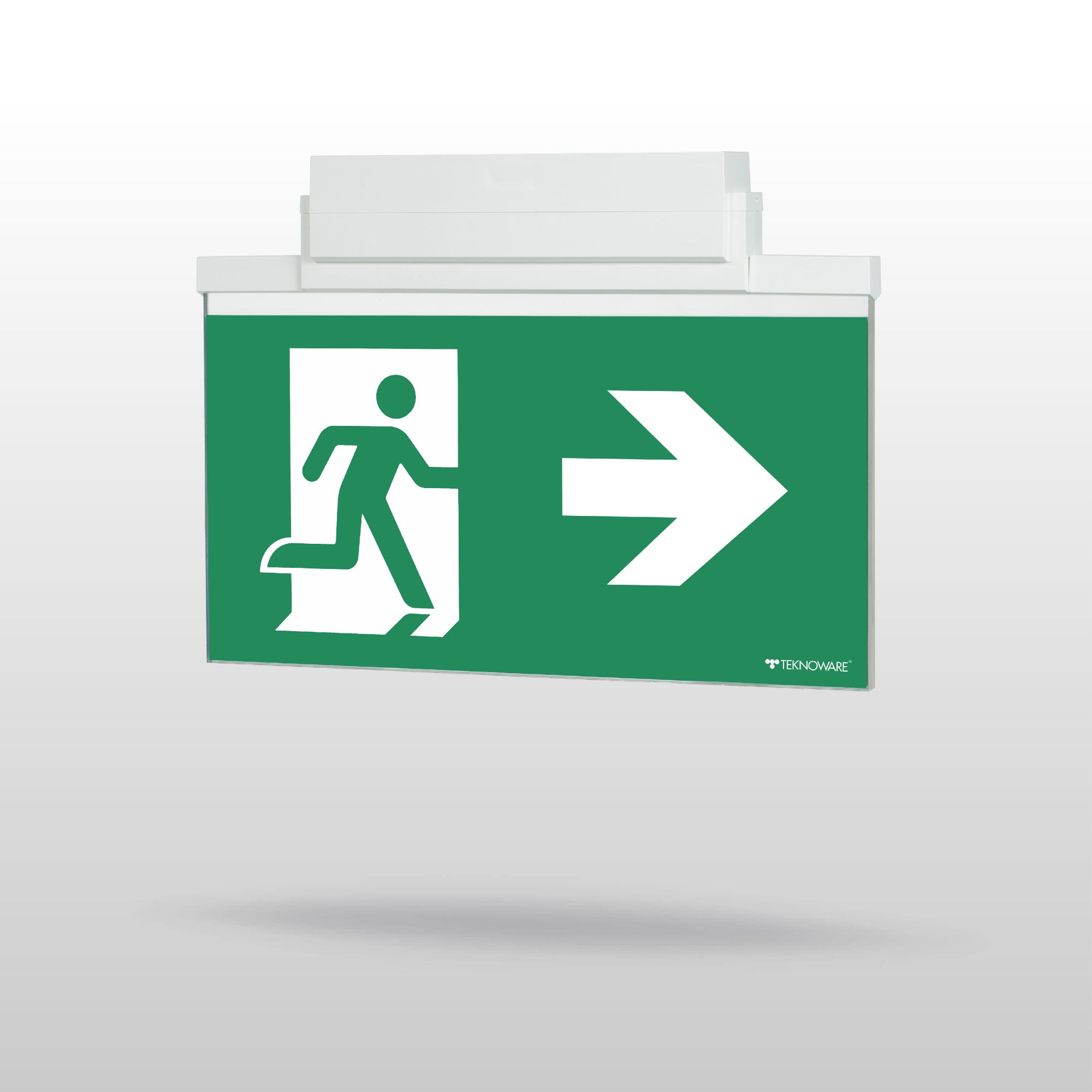

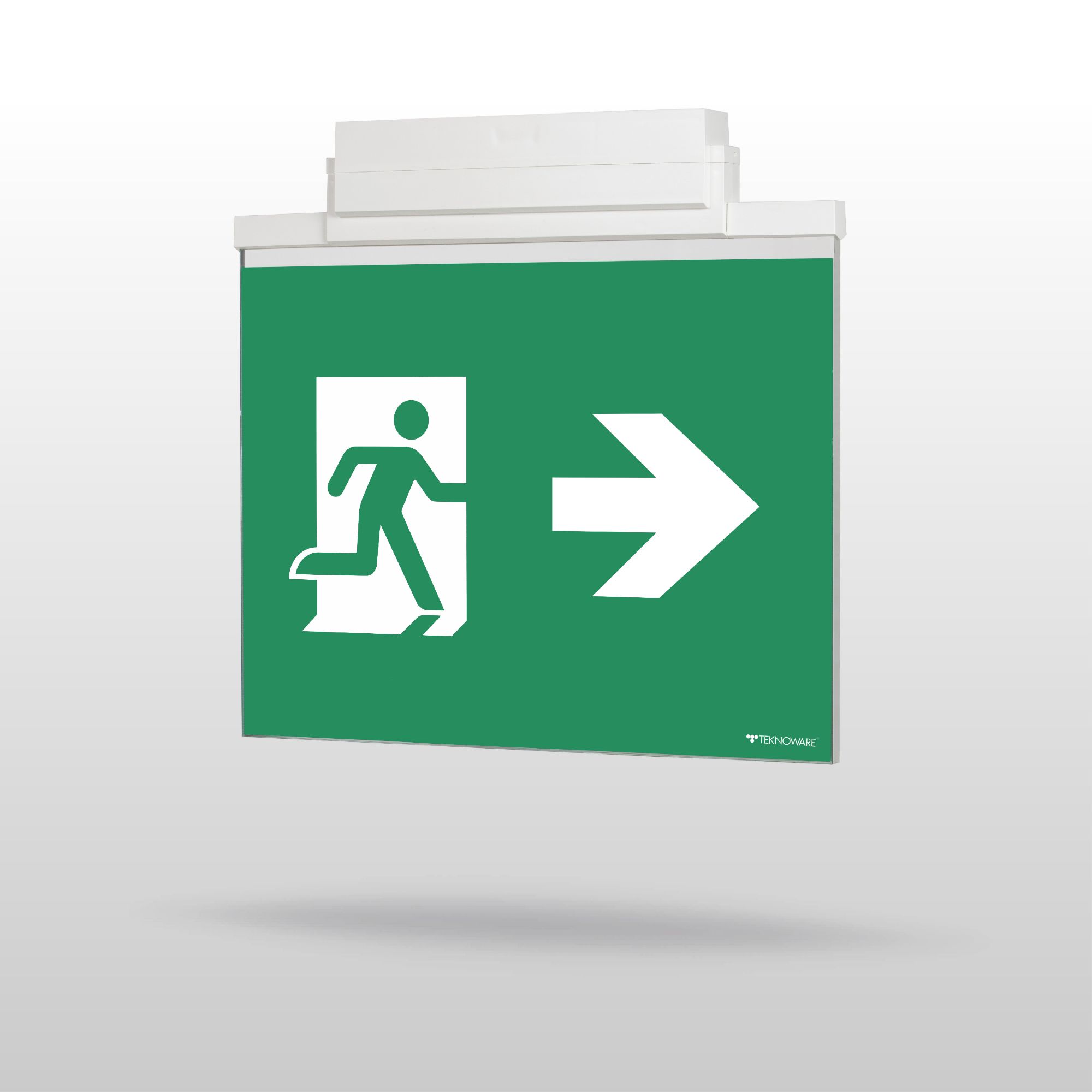

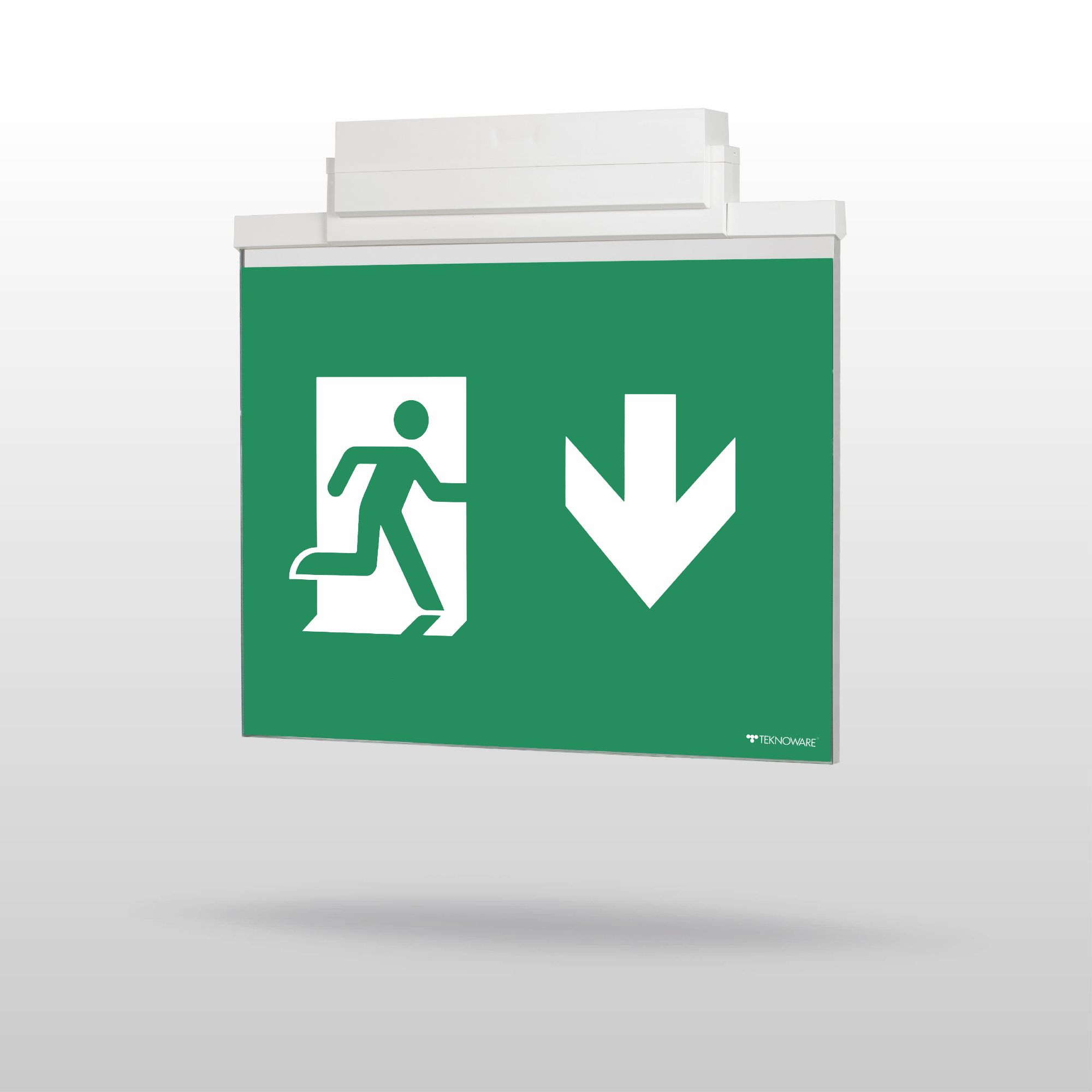

ESC 81 LED Emergency Exit Light TWT8151W
230 V centrally supplied LED Emergency Exit Light
ESC 81 is an innovative LED exit light equipped with a light plate. It combines cutting edge technology with modern luminaire design.
Evenly illuminated light plates, low power consumption and slender looking luminaires are the result of Teknoware’s pioneering, expertise in electronics and product design. Luminaire can be used as 1 or 2 sided, recess and surface mounted.
ESC 81 is particularly easy and fast to install thanks to a separate mounting piece, into which also the power supply is connected.
Pictograms not included—must be ordered separately.
| Product code | TWT8151W | Electrical number (FI) | 4281013 | |
|---|---|---|---|---|
| GTIN | 6438045011899 | TARIC code | 94056180 | |
| Weight | 1,40 kg | Measurements | 405 × 40 × 287 mm | |
| Body material | plastic | CE Mark | Yes | |
| Colour | RAL9003 (Signal white) | Diffusor Material | Acryle | |
| Electrical Installation | 2/3 x 2,5 mm² | EN 1838 | Yes | |
| EN 60598-2-22 | Yes | ETIM class | Emergency luminaire (EC001957) | |
| Glow Wire Test of Plastic Materials (°C) | 650 | IP Class | IP43 | |
| Light Source | LED | Max Input Power VA | 5,5 VA | |
| Max Input Power W | 3,2 W | Mounting | Ceiling, Wall | |
| Mounting option | Flag, Pendel, Recess | Nominal Supply Voltage | 220-240 V, 50/60 Hz AC, DC | |
| Pictogram | None | Protection Class | II | |
| Aperture for Recess Mounting | 45 x 415 | Temperature Range Min - Max (°C) | -30...+50 | |
| Suitable for Through-Wiring | Yes | Viewing distance | 40 m, 60 m |
| Product code | TWT8151W |
|---|---|
| Electrical number (FI) | 4281013 |
| GTIN | 6438045011899 |
| TARIC code | 94056180 |
| Weight | 1,40 kg |
| Measurements | 405 × 40 × 287 mm |
| Body material | plastic |
| CE Mark | Yes |
| Colour | RAL9003 (Signal white) |
| Diffusor Material | Acryle |
| Electrical Installation | 2/3 x 2,5 mm² |
| EN 1838 | Yes |
| EN 60598-2-22 | Yes |
| ETIM class | Emergency luminaire (EC001957) |
| Glow Wire Test of Plastic Materials (°C) | 650 |
| IP Class | IP43 |
| Light Source | LED |
| Max Input Power VA | 5,5 VA |
| Max Input Power W | 3,2 W |
| Mounting | Ceiling, Wall |
| Mounting option | Flag, Pendel, Recess |
| Nominal Supply Voltage | 220-240 V, 50/60 Hz AC, DC |
| Pictogram | None |
| Protection Class | II |
| Aperture for Recess Mounting | 45 x 415 |
| Temperature Range Min - Max (°C) | -30...+50 |
| Suitable for Through-Wiring | Yes |
| Viewing distance | 40 m, 60 m |
Scale Images
Light Distribution Charts
- Tables of 1 lux and 0,5 lux, under the Exit Light.
- Level of measurement 0,02 m, measurement result with battery operation
R1 distance from wall, X axis
R4 distance from wall, Y axis
Downlight chart for Exit Lights
| Mounting height (m) | Below the light (lx) | R1 (m) | R4 (m) | R1 (m) | R4 (m) |
| - | - | 1 lx | 1 lx | 0.5 lx | 0.5 lx |
| 2 | 1.5 | 0.5 | 1 | 1.5 | 2 |
| 2.5 | 0.8 | 1.5 | 2 |
Downloads and Data sheets
| File name | Download |
|---|---|
| Product card | Download |
| Installation Guide ESC 81 - VOT52 | Download |
| General information about installing Teknoware lights | Download |
Required products
| Product code | Electrical number | Description | Viewing distance | Pictogram | |
|---|---|---|---|---|---|
| PBV81401E | 4281210 | Pictogram PBV81401E | 40 m |   | |
| PBV81401E1 | 4282259 | Pictogram PBV81401E1 | 40 m | | |
| PBV81401E2 | 4282260 | Pictogram PBV81401E2 | 40 m | | |
| PBV81401ER | 4226382 | Pictogram PBV81401ER | 40 m | ||
| PBV81402E | 4281209 | Pictogram PBV81402E | 40 m |  | |
| PBV81402E3 | 4282261 | Pictogram PBV81402E3 | 40 m | | |
| PBV81402ER | 4226383 | Pictogram PBV81402ER | 40 m |  | |
| PBV81601E | 4280946 | Pictogram PBV81601E | 60 m | | |
| PBV81601E1 | 4282262 | Pictogram PBV81601E1 | 60 m | | |
| PBV81601E2 | 4282263 | Pictogram PBV81601E2 | 60 m | | |
| PBV81601ER | 4226384 | Pictogram PBV81601ER | 60 m | ||
| PBV81602E | 4280945 | Pictogram PBV81602E | 60 m | | |
| PBV81602E3 | 4282264 | Pictogram PBV81602E3 | 60 m | | |
| PBV81602ER | 4226385 | Pictogram PBV81602ER | 60 m | |
