Self-Contained System

Self-Contained System

In a self-contained system, each luminaire has its own back up power source—in the case of our self-contained luminaires, this is a supercapacitor or a battery. Our self-contained luminaires include the LumiTest functionality that monitors and tests the luminaires automatically and reliably.

Self-contained luminaires are an easy option for implementing emergency lighting in a smaller project. By combining the supercapacitor technology with our wireless AaltoCtrl remote monitoring, self-contained luminaires can be used for any size of emergency lighting project. Our technologies also enable the use of modern emergency and exit lights in large renovation projects without the need for additional cabling.

Technical Solutions for Self-Contained Systems


Self-contained emergency lighting system with supercapacitors

A self-contained luminaire system with supercapacitors is a maintenance-free, durable and environmentally friendly solution for arranging the property’s emergency lighting. The supercapacitors do not contain any dangerous substances and can be recycled as WEEE. The temperature range of supercapacitors is -25°C…+35°C. All Escap luminaires come with an extended 12-year product warranty. In practice, the Escap emergency exit lights and emergency lights are maintenance


Self-contained emergency lighting system with batteries

A self-contained emergency lighting system with batteries is a simple and low cost way of arranging emergency lighting in a property. You should note, however, that the lifetime of batteries is approximately half of that of supercapacitors. A selfcontained emergency lighting system with batteries is best suited for properties where the batteries can be easily replaced.

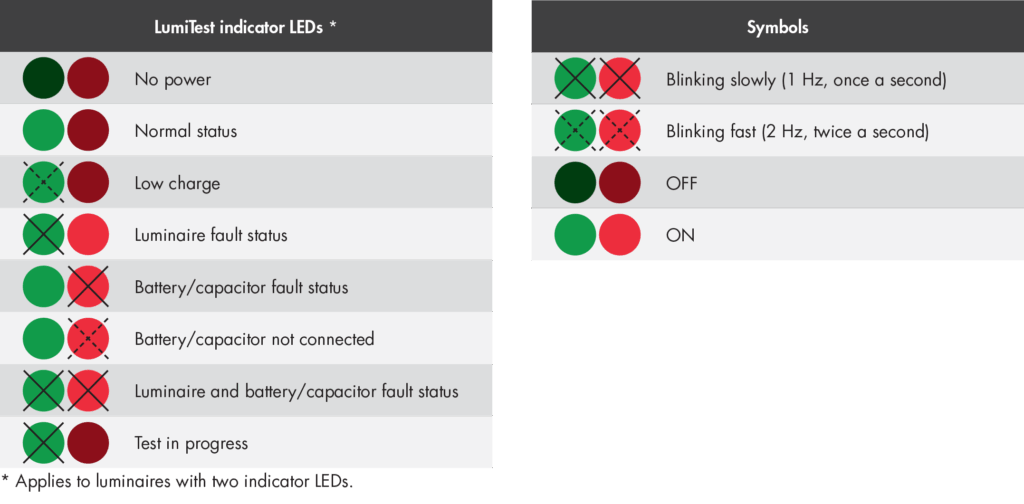

LumiTest

Our self-contained emergency lights include the LumiTest functionality that automatically monitors and tests the luminaire reliably (except for the no-test models). The operation of the luminaire and its light source are tested daily and the duration test is conducted every six months. Two indicator LEDs, one green and one red, indicate the status of the luminaire. A red LED indicates that the luminaire has a fault.


AaltoCtrl

The AaltoCtrl remote monitoring system enables wireless, centralised monitoring of self-contained lights. The system does not require data cabling between the luminaires, just the local power supply to the luminaires is sufficient.


Adaptive emergency lighting system

Our selection also includes adaptive emergency exit lights. They can be used to implement a system that adapts in real time according to the nature of danger and the location. People can, for example, be prohibited from entry into escape routes which have become dangerous. The purpose of the adaptive system is to speed up evacuation and increase evacuation safety. Ask our emergency lighting sales for more information.


Remote management for emergency lighting

Remote management of emergency lighting makes it easier to monitor the system. It provides continuous, real-time data of the emergency lighting system, and all the tests performed are saved in an electronic log. Centralised remote management is available for both the centrally supplied and the self-contained lighting systems. The remote monitoring system can also be integrated as a part of the building management system or provided as a cloud service.
