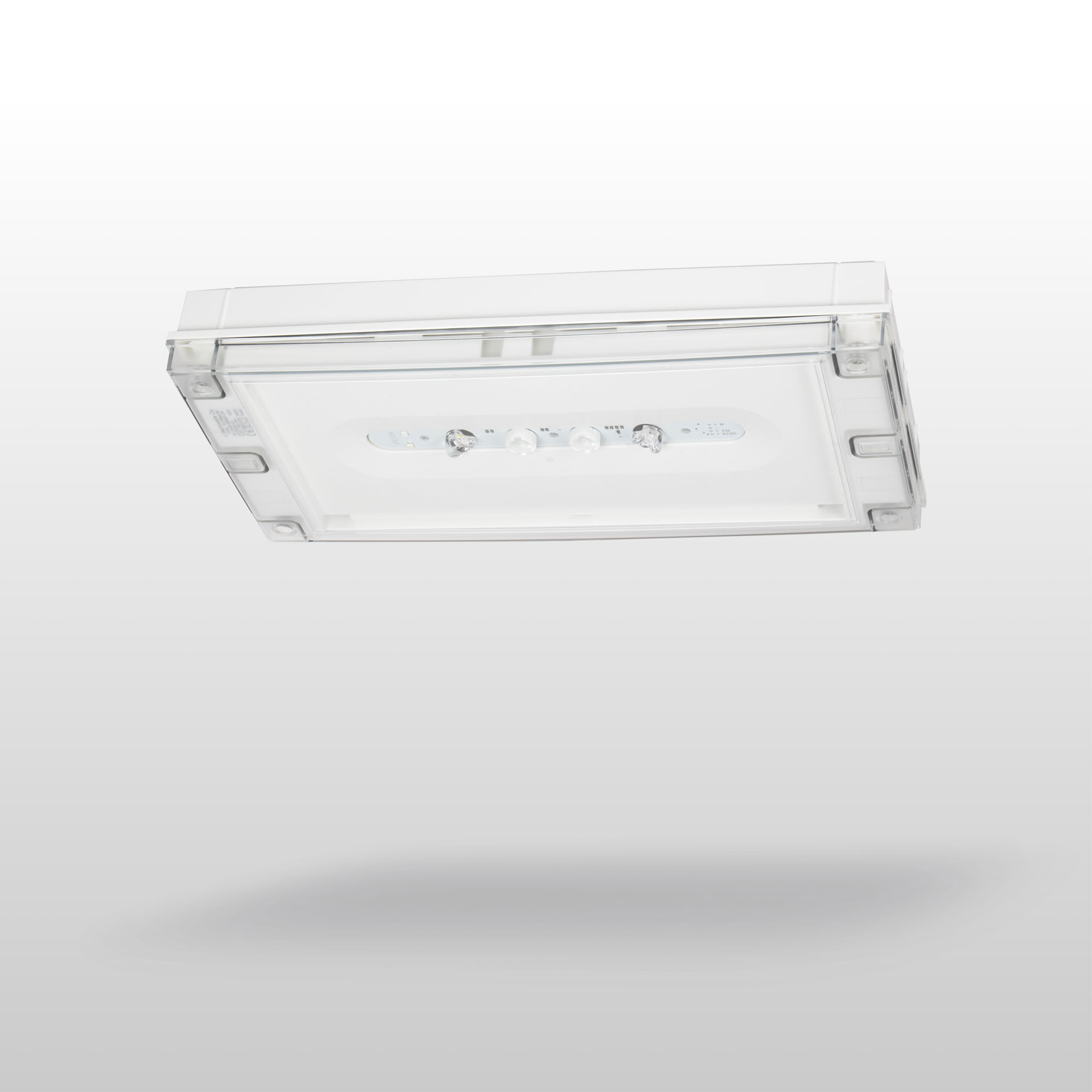

Solid Zone Midbay Emergency Light Y3692WA
Self-contained Escap Emergency light for open areas with 1 h Super Capacitor and Wireless Central Monitoring (Invidually packed TWS3692WA)
Designed for emergency lighting in open areas, Solid Zone Midbay is an emergency light with a IP65 enclosure.
The luminaire is completely dust proof and water proof, so it is suitable for example for industrial premises and parking halls. Escap and centrally supplied luminaires supplied luminaires are also suitable for outdoor use.
The Solid luminaire uses long lasting leds as its light source.
Special attention has been paid to the design, for easy installation.
Product code | Y3692WA | Electrical number (FI) | 4282333 | |
---|---|---|---|---|
GTIN | 6438045021669 | TARIC code | 94056180 | |
Weight | 1,50 kg | Measurements | 37,10 × 18,10 × 5,70 cm | |
Aalto Control | Yes | Backup (h) | 1 h | |
Body material | plastic | CE Mark | Yes | |
Colour | RAL9003 (Signal white) | Electrical Installation | 2/3 x 2,5 mm² | |
EN 1838 | Yes | EN 60598-2-22 | Yes | |
Escap | Yes | ETIM class | Emergency luminaire (EC001957) | |
Glow Wire Test of Plastic Materials (°C) | 850 | IP Class | IP65 | |
Light Source | LED | Lumi Test | Yes | |
Luminous Flux (lm) | 93 | Max Input Power VA | 3 VA | |
Mounting | Surface | Nominal Supply Voltage | 220-240 V, 50/60 Hz AC | |
Protection Class | II | Temperature Range Min - Max (°C) | -25…+35 | |
Suitable for Through-Wiring | Yes |
Product code | Y3692WA |
---|---|
Electrical number (FI) | 4282333 |
GTIN | 6438045021669 |
TARIC code | 94056180 |
Weight | 1,50 kg |
Measurements | 37,10 × 18,10 × 5,70 cm |
Aalto Control | Yes |
Backup (h) | 1 h |
Body material | plastic |
CE Mark | Yes |
Colour | RAL9003 (Signal white) |
Electrical Installation | 2/3 x 2,5 mm² |
EN 1838 | Yes |
EN 60598-2-22 | Yes |
Escap | Yes |
ETIM class | Emergency luminaire (EC001957) |
Glow Wire Test of Plastic Materials (°C) | 850 |
IP Class | IP65 |
Light Source | LED |
Lumi Test | Yes |
Luminous Flux (lm) | 93 |
Max Input Power VA | 3 VA |
Mounting | Surface |
Nominal Supply Voltage | 220-240 V, 50/60 Hz AC |
Protection Class | II |
Temperature Range Min - Max (°C) | -25…+35 |
Suitable for Through-Wiring | Yes |
Scale Images
Light Distribution Charts
- 0.5 lux table for open areas, in accordance with EN 1838; 0.5-m border zone is taken into account in the table.
- Level of measurement 0.02 m, measurement result in emergency mode
R1 distance from wall, X axis
R2 mounting distance, X axis
R3 mounting distance, Y axis
R4 distance from wall, Y axis
Emergency lighting for open areas (ceiling mounting)
Mounting height (m) | Below the light (lx) | R1 (m) | R2 (m) | R3 (m) | R4 (m) |
- | - | 0.5 lx | 0.5 lx | 0.5 lx | 0.5 lx |
2.5 | 9 | 2 | 6 | 6 | 2 |
3 | 6.5 | 2 | 6.5 | 6.5 | 2 |
4 | 4 | 2.5 | 7 | 7 | 2.5 |
6 | 2 | 3 | 8.5 | 8.5 | 3 |
8 | 1 | 3.5 | 9 | 9 | 3.5 |
