ESC Cube emergency exit light TWK6351WK
Addressable 230 V centrally supplied emergency exit light

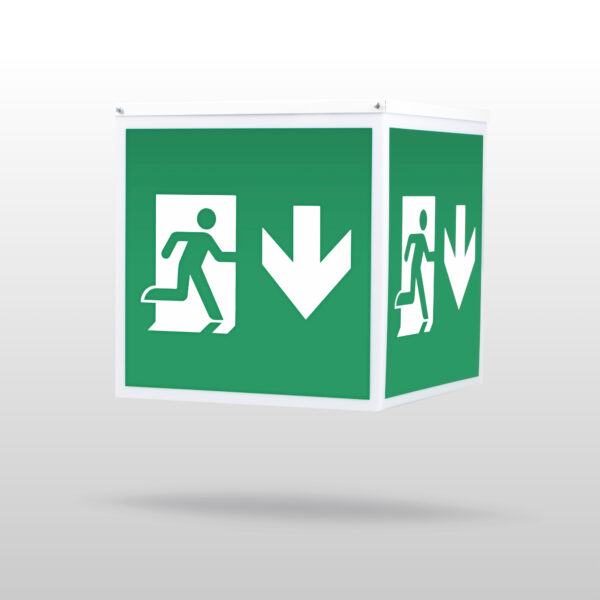

ESC Cube is a large and impressive, cube-shaped exit light. Pictograms can be attached on the luminaire on all four sides. ESC Cube has a plastic/metal body.
The luminaire is suitable for ceiling and suspension mounting. Ceiling mounting is included as standard in the luminaire. Long lasting leds are used as the the light source.
ESC Cube is particularly suitable for large public areas such as shopping centers, where the escape route passes through a space in the middle of the staircase. One ESC Cube exit light can cover the guidance for the entire surrounding area.
| SKU | TWK6351WK | Electricity number | 4148680 | |
|---|---|---|---|---|
| GTIN | 6438045027630 | Customs code | 94056180 | |
| Weight | 4,00 kg | Dimensions | 36,20 × 36,20 × 37,10 cm | |
| Body material | metal, plastic | CE Mark | Yes | |
| Colour | RAL9003 | Electrical Installation | 3 x 2,5 mm² | |
| EN 1838 | Yes | EN 60598-2-22 | Yes | |
| ETIM class | Emergency luminaire (EC001957) | Glow Wire Test of Plastic Materials (°C) | 650 | |
| Intelligent Controller | Yes | IP Class | IP20 | |
| Light Source | LED | Max Input Power VA | 17 VA | |
| Max Input Power W | 10 W | Mounting | Ceiling | |
| Mounting option | Pendel | Nominal Supply Voltage | 24 V, 50/60 Hz AC, DC | |
| Protection Class | I | Tapsa Control | Yes | |
| Temperature Range Min - Max (°C) | -30...+50 | Suitable for Through-Wiring | Yes | |
| Havaintoetäisyys | 65 m |
| SKU | TWK6351WK |
|---|---|
| Electricity number | 4148680 |
| GTIN | 6438045027630 |
| Customs code | 94056180 |
| Weight | 4,00 kg |
| Dimensions | 36,20 × 36,20 × 37,10 cm |
| Body material | metal, plastic |
| CE Mark | Yes |
| Colour | RAL9003 |
| Electrical Installation | 3 x 2,5 mm² |
| EN 1838 | Yes |
| EN 60598-2-22 | Yes |
| ETIM class | Emergency luminaire (EC001957) |
| Glow Wire Test of Plastic Materials (°C) | 650 |
| Intelligent Controller | Yes |
| IP Class | IP20 |
| Light Source | LED |
| Max Input Power VA | 17 VA |
| Max Input Power W | 10 W |
| Mounting | Ceiling |
| Mounting option | Pendel |
| Nominal Supply Voltage | 24 V, 50/60 Hz AC, DC |
| Protection Class | I |
| Tapsa Control | Yes |
| Temperature Range Min - Max (°C) | -30...+50 |
| Suitable for Through-Wiring | Yes |
| Havaintoetäisyys | 65 m |
