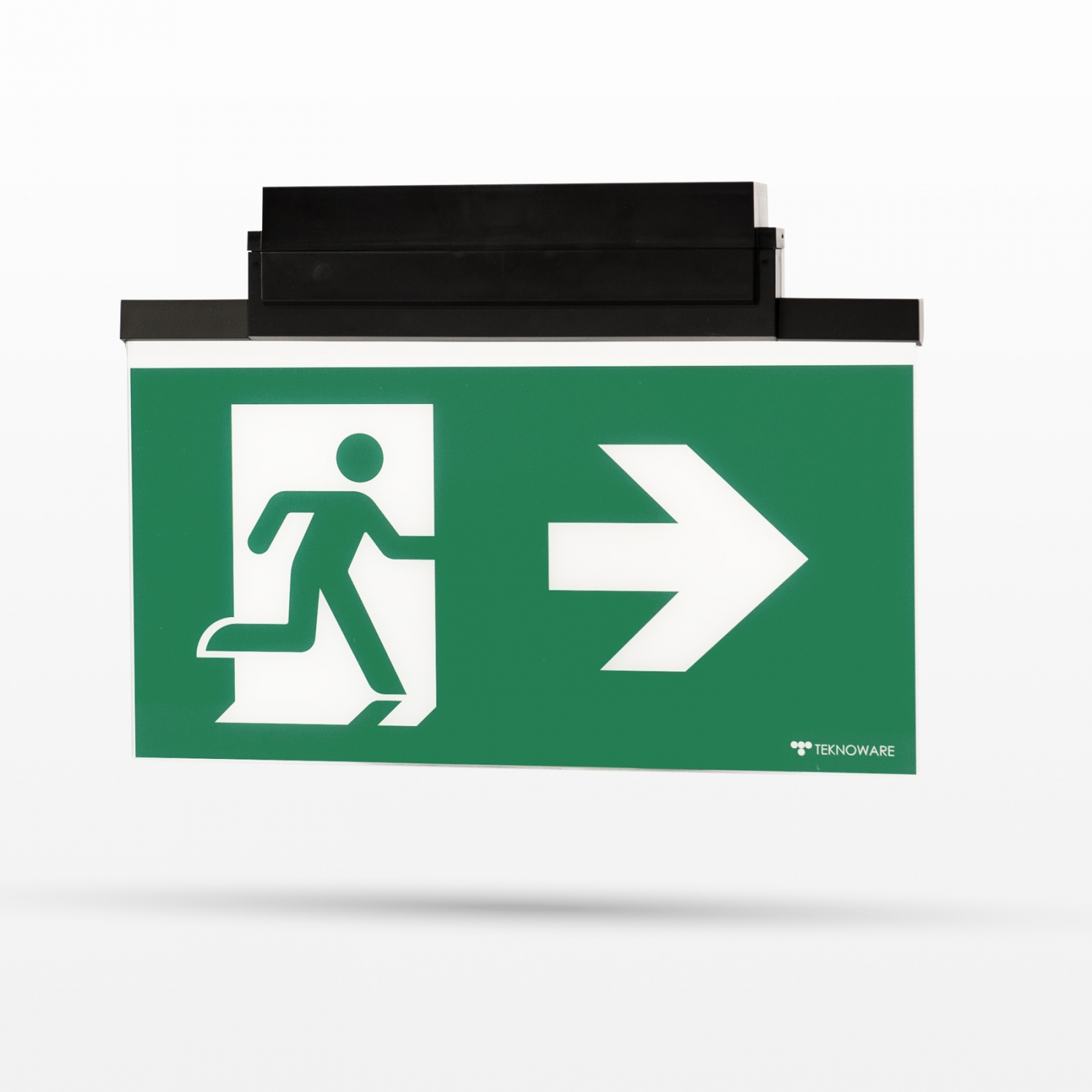

ESC 81 emergency exit light TWT8151WKT

ESC 81 emergency exit light TWT8151WKT

Download PDF

Addressable 230 V centrally supplied Emergency Exit Light

ESC 81 is an innovative exit light equipped with a light plate. It combines cutting edge technology with modern luminaire design.
Evenly illuminated light plates, low power consumption and slender looking luminaires are the result of Teknoware’s pioneering, expertise in electronics and product design. Luminaire can be used as 1 or 2 sided, recess and surface mounted.
ESC 81 is particularly easy and fast to install thanks to a separate mounting piece, into which also the power supply is connected.

Pictograms not included—must be ordered separately.

icon-ce
EN 1838
EN 60598_2_22
650 °C
43
icon-LED
220-240 V 50/60 Hz AC DC
icon-ProtectionClassII
9005
icon-TapsaControl
icon-Through-wiring
40 m
60 m
Product codeTWT8151WKTElectrical number (FI)4148771
GTIN06438045028613TARIC code94056180
Weight1,40 kgMeasurements40,50 × 4,00 × 28,70 cm
Body materialplasticCE MarkYes
ColourRAL9005 (Jet black)Electrical Installation2/3 x 2,5 mm²
EN 1838YesEN 60598-2-22Yes
ETIM classEmergency luminaire (EC001957)Glow Wire Test of Plastic Materials (°C)650
IP ClassIP43Light SourceLED
Max Input Power VA6,5 VAMax Input Power W4,2 W
MountingCeiling, WallMounting optionFlag, Pendel, Recess
Nominal Supply Voltage220-240 V, 50/60 Hz AC, DCProtection ClassII
Aperture for Recess Mounting45 x 415Tapsa ControlYes
Temperature Range Min - Max (°C)-30...+50Suitable for Through-WiringYes
Viewing distance40 m, 60 m
Product codeTWT8151WKT
Electrical number (FI)4148771
GTIN06438045028613
TARIC code94056180
Weight1,40 kg
Measurements40,50 × 4,00 × 28,70 cm
Body materialplastic
CE MarkYes
ColourRAL9005 (Jet black)
Electrical Installation2/3 x 2,5 mm²
EN 1838Yes
EN 60598-2-22Yes
ETIM classEmergency luminaire (EC001957)
Glow Wire Test of Plastic Materials (°C)650
IP ClassIP43
Light SourceLED
Max Input Power VA6,5 VA
Max Input Power W4,2 W
MountingCeiling, Wall
Mounting optionFlag, Pendel, Recess
Nominal Supply Voltage220-240 V, 50/60 Hz AC, DC
Protection ClassII
Aperture for Recess Mounting45 x 415
Tapsa ControlYes
Temperature Range Min - Max (°C)-30...+50
Suitable for Through-WiringYes
Viewing distance40 m, 60 m

Scale Images

Scale image
Scale image

Downloads and Data sheets

File nameDownload
Product cardDownload
General information about installing Teknoware lightsDownload
Installation Guide ESC 81 - VOT52Download

Installation videos

Required products

Product codeElectrical numberDescriptionViewing distancePictogram
PBV81401E4281210Pictogram PBV81401E40 m Add to cart
PBV81402E34282261Pictogram PBV81402E340 m Add to cart
PBV81402E4281209Pictogram PBV81402E40 m Add to cart
PBV81601E4280946Pictogram PBV81601E60 m Add to cart
PBV81602E4280945Pictogram PBV81602E60 m Add to cart
PBV81601E24282263Pictogram PBV81601E260 m Add to cart
PBV81601E14282262Pictogram PBV81601E160 m Add to cart
PBV81401E24282260Pictogram PBV81401E240 m Add to cart
PBV81401E14282259Pictogram PBV81401E140 m Add to cart

Accessories

Product codeElectrical numberDescription
TWT81024281038Flag bracket TWT8102Add to cart
TWT81014281037Recess mounting frame TWT8101Add to cart
TW77510B4281136Shock protecting cover TW77510BAdd to cart
TWT90004211302Suspension bracket TWT9000Add to cart

Product codeElectrical numberDescriptionViewing distancePictogram
XWT81014281036White label XWT8101 Add to cart
XWT81064280951White label XWT8106 Add to cart
